Application Range of Spring Energized Seals
Temperature Range: -268°C ~ 340°C
Pressure Range: Vacuum ~ 350MPa
Size Range: 0.635mm ~ 3000mm
Applicable Media: Suitable for a variety of media, including corrosive chemical media and harsh process fluids.
Note: The specific applicable range depends on materials, structure and actual working conditions.

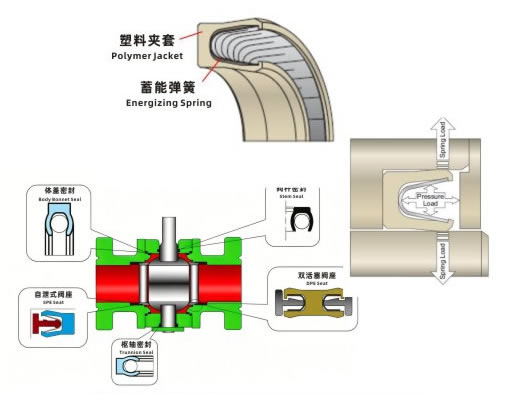

Working Principle of Spring Energized Seals:
The energizing spring inside the spring energized seal provides initial preload force to keep the polymer jacket sealing lip in continuous contact with the mating surface. As the system pressure rises, the medium pressure acts on the seal jacket, further increasing the contact pressure between the sealing lip and the mating surface, so as to achieve reliable sealing under harsh working conditions.
